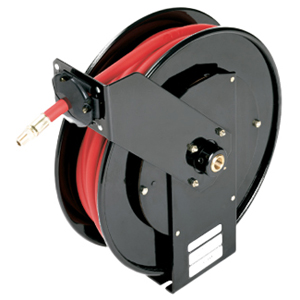

B Series
Water / Air / Anti-freeze / Oil / Lube/ATF / Grease Hose Reels
Spring Retractable
Models
Drag your finger across the table to scroll
| Model | Weight (lb) | Hose ID (in) | Hose Length (ft) | Pressure (PSI) | Inlet (in) | Hose Included | Max Temperature °F | Rewind Type | Fluid | Quick Ship |
|---|---|---|---|---|---|---|---|---|---|---|
| LB 335 | 28 | 3/8 | 35 | 300 | 3/8 FPT | yes | 200 | Spring Retractable | Water Air Anti-freeze | |
| LB 330 | 27 | 3/8 | 30 | 300 | 3/8 FPT | yes | 200 | Spring Retractable | Water Air Anti-freeze | |
| LB 325 | 27 | 3/8 | 25 | 300 | 3/8 FPT | yes | 200 | Spring Retractable | Water Air Anti-freeze | |
| LB 320 | 26 | 3/8 | 20 | 300 | 3/8 FPT | yes | 200 | Spring Retractable | Water Air Anti-freeze | |
| LB 250 | 30 | 1/4 | 50 | 300 | 3/8 FPT | yes | 200 | Spring Retractable | Water Air Anti-freeze | |
| LB 240 | 29 | 1/4 | 40 | 300 | 3/8 FPT | yes | 200 | Spring Retractable | Water Air Anti-freeze | |
| LB 235 | 28 | 1/4 | 35 | 300 | 3/8 FPT | yes | 200 | Spring Retractable | Water Air Anti-freeze | |
| LB 230 | 27 | 1/4 | 30 | 300 | 3/8 FPT | yes | 200 | Spring Retractable | Water Air Anti-freeze | |
| LB 225 | 26 | 1/4 | 25 | 300 | 3/8 FPT | yes | 200 | Spring Retractable | Water Air Anti-freeze | |
| LB 200 | 25 | 1/4 | 1000 | 3/8 FPT | no | 200 | Spring Retractable | Water Air Anti-freeze | ||
| LB 500 | 25 | 1/2 | 1000 | 1/2 FPT | no | 200 | Spring Retractable | Water Air Anti-freeze | ||
| LB 300 | 25 | 3/8 | 1000 | 3/8 FPT | no | 200 | Spring Retractable | Water Air Anti-freeze | ||
| MB 300 | 22 | 3/8 | 2500 | 3/8 FPT | no | 200 | Spring Retractable | Oil Lube/ATF | ||
| MB 320 | 29 | 3/8 | 20 | 2500 | 3/8 FPT | yes | 200 | Spring Retractable | Oil Lube/ATF | |
| MB 325 | 30 | 3/8 | 25 | 2500 | 3/8 FPT | yes | 200 | Spring Retractable | Oil Lube/ATF | |
| MB 330 | 31 | 3/8 | 30 | 2500 | 3/8 FPT | yes | 200 | Spring Retractable | Oil Lube/ATF | |
| MB 335 | 32 | 3/8 | 35 | 2500 | 3/8 FPT | yes | 200 | Spring Retractable | Oil Lube/ATF | |
| HB 235 | 32 | 1/4 | 35 | 5000 | 1/4 FPT | yes | 200 | Spring Retractable | Grease | |
| HB 230 | 31 | 1/4 | 30 | 5000 | 1/4 FPT | yes | 200 | Spring Retractable | Grease | |
| HB 225 | 30 | 1/4 | 25 | 5000 | 1/4 FPT | yes | 200 | Spring Retractable | Grease | |
| HB 220 | 29 | 1/4 | 20 | 5000 | 1/4 FPT | yes | 200 | Spring Retractable | Grease | |
| HB 200 | 25 | 1/4 | 8000 | 1/4 FPT | no | 200 | Spring Retractable | Grease |
Features
B Series Reels are best used with shorter and lower volume hose operations, such as auto-truck service garages for all air applications as well as anti-freeze, motor oil, ATF and grease. The all brass main shaft and swivel assure less corrosion for extended seal life the low pressure rating (up to 1000 PSI).
Reels shipped standard (sf) hose payout position. For ceiling mount add suffix "sc".
Mounting Slots 3/8" wide x 3/4" deep for max 5/16" dia. bolt
LB - Low Pressure Reels for Air, Water and Anti-freeze
MB - Medium Pressure Reels for Motor oil and ATF. Standard 1-wire braid hose furnished.
HB - High Pressure Reels for Grease. Standard 2-wire braid hose furnished.

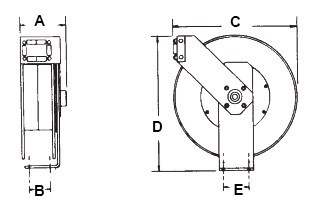

Dimensions
Drag your finger across the table to scroll
| Model | A | B | C | D | E |
|---|---|---|---|---|---|
| LB 335 | 5.250 | 2.750 | 14.000 | 14.875 | 4.000 |
| LB 330 | 5.250 | 2.750 | 14.000 | 14.875 | 4.000 |
| LB 325 | 5.250 | 2.750 | 14.000 | 14.875 | 4.000 |
| LB 320 | 5.250 | 2.750 | 14.000 | 14.875 | 4.000 |
| LB 250 | 5.250 | 2.750 | 14.000 | 14.875 | 4.000 |
| LB 240 | 5.250 | 2.750 | 14.000 | 14.875 | 4.000 |
| LB 235 | 5.250 | 2.750 | 14.000 | 14.875 | 4.000 |
| LB 230 | 5.250 | 2.750 | 14.000 | 14.875 | 4.000 |
| LB 225 | 5.250 | 2.750 | 14.000 | 14.875 | 4.000 |
| LB 200 | 5.250 | 2.750 | 14.000 | 14.875 | 4.000 |
| LB 500 | 5.250 | 2.750 | 14.000 | 14.875 | 4.000 |
| LB 300 | 5.250 | 2.750 | 14.000 | 14.875 | 4.000 |
| MB 300 | 5.250 | 2.750 | 14.000 | 14.875 | 4.000 |
| MB 320 | 5.250 | 2.750 | 14.000 | 14.875 | 4.000 |
| MB 325 | 5.250 | 2.750 | 14.000 | 14.875 | 4.000 |
| MB 330 | 5.250 | 2.750 | 14.000 | 14.875 | 4.000 |
| MB 335 | 5.250 | 2.750 | 14.000 | 14.875 | 4.000 |
| HB 235 | 5.250 | 2.750 | 14.000 | 14.875 | 4.000 |
| HB 230 | 5.250 | 2.750 | 14.000 | 14.875 | 4.000 |
| HB 225 | 5.250 | 2.750 | 14.000 | 14.875 | 4.000 |
| HB 220 | 5.250 | 2.750 | 14.000 | 14.875 | 4.000 |
| HB 200 | 5.250 | 2.750 | 14.000 | 14.875 | 4.000 |
