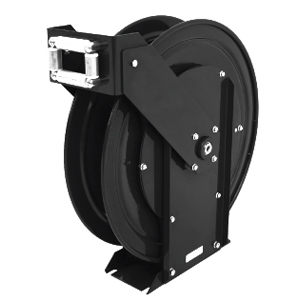

G Series
Water / Air / Anti-freeze / Oil / Grease / Lube/ATF Hose Reels
Spring Retractable
Models
Drag your finger across the table to scroll
| Model | Weight (lb) | Hose ID (in) | Hose Length (ft) | Pressure (PSI) | Inlet (in) | Hose Included | Max Temperature °F | Rewind Type | Fluid | Quick Ship |
|---|---|---|---|---|---|---|---|---|---|---|
| LG 575 | 104 | 1/2 | 75 | 300 | 1/2 FPT | yes | 200 | Spring Retractable | Water Air Anti-freeze | |
| LG 3100 | 95 | 3/8 | 100 | 300 | 1/2 FPT | yes | 200 | Spring Retractable | Water Air Anti-freeze | |
| LG 375 | 90 | 3/8 | 75 | 300 | 1/2 FPT | yes | 200 | Spring Retractable | Water Air Anti-freeze | |
| LG 550 | 85 | 1/2 | 50 | 300 | 1/2 FPT | yes | 200 | Spring Retractable | Water Air Anti-freeze | |
| LG 500 | 75 | 1/2 | 1000 | 1/2 FPT | no | 200 | Spring Retractable | Water Air Anti-freeze | ||
| LG 300 | 75 | 3/8 | 1000 | 1/2 FPT | no | 200 | Spring Retractable | Water Air Anti-freeze | ||
| MG 550 | 85 | 1/2 | 50 | 2500 | 1/2 FPT | yes | 200 | Spring Retractable | Water Air Oil | |
| MG 375 | 90 | 3/8 | 75 | 2500 | 1/2 FPT | yes | 200 | Spring Retractable | Water Air Oil | |
| MG 575 | 104 | 1/2 | 75 | 2500 | 1/2 FPT | yes | 200 | Spring Retractable | Water Air Oil | |
| MG 300 | 75 | 3/8 | 4000 | 1/2 FPT | no | 200 | Spring Retractable | Water Air Oil | ||
| MG 500 | 75 | 1/2 | 4000 | 1/2 FPT | no | 200 | Spring Retractable | Water Air Oil | ||
| HG 375 | 100 | 3/8 | 75 | 5000 | 3/8 FPT | yes | 200 | Spring Retractable | Oil Grease Lube/ATF | |
| HG 350 | 85 | 3/8 | 50 | 5000 | 3/8 FPT | yes | 200 | Spring Retractable | Oil Grease Lube/ATF | |
| HG 2100 | 90 | 1/4 | 100 | 5000 | 3/8 FPT | yes | 200 | Spring Retractable | Oil Grease Lube/ATF | |
| HG 300 | 75 | 3/8 | 8000 | 3/8 FPT | no | 200 | Spring Retractable | Oil Grease Lube/ATF |
Features
Reels shipped standard (sf) hose payout position. For ceiling mount add suffix "sc".
Mounting Slots 1/2" wide x 3/4" deep for max 7/16" dia. bolt.
Standard Black Powder Coat.
LG - Low Pressure Reels for plant maintenance, service trucks and other industrial applications where hose storage is necessary. Standard hose for air, water, and antifreeze solutions. Other hoses available upon request.
MG - Medium Pressure Reels for higher pressures of air, water, or heavier oils. Standard 1-wire braid hose furnished.
HG - High Pressure Reels are used exclusively where grease is being applied as in lube applications for oil-road service or garage lube systems. Standard 2-wire braid hose furnished.

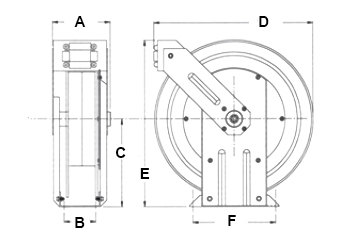

Dimensions
Drag your finger across the table to scroll
| Model | A | B | C | D | E | F |
|---|---|---|---|---|---|---|
| LG 575 | 8.250 | 4.500 | 12.500 | 22.500 | 23.625 | 11.750 |
| LG 3100 | 8.250 | 4.500 | 12.500 | 22.500 | 23.625 | 11.750 |
| LG 375 | 8.250 | 4.500 | 12.500 | 22.500 | 23.625 | 11.750 |
| LG 550 | 8.250 | 4.500 | 12.500 | 22.500 | 23.625 | 11.750 |
| LG 500 | 8.250 | 4.500 | 12.500 | 22.500 | 23.625 | 11.750 |
| LG 300 | 8.250 | 4.500 | 12.500 | 22.500 | 23.625 | 11.750 |
| MG 550 | 8.250 | 4.500 | 12.500 | 22.500 | 23.625 | 11.750 |
| MG 375 | 8.250 | 4.500 | 12.500 | 22.500 | 23.625 | 11.750 |
| MG 575 | 8.250 | 4.500 | 12.500 | 22.500 | 23.625 | 11.750 |
| MG 300 | 8.250 | 4.500 | 12.500 | 22.500 | 23.625 | 11.750 |
| MG 500 | 8.250 | 4.500 | 12.500 | 22.500 | 23.625 | 11.750 |
| HG 375 | 8.250 | 4.500 | 12.500 | 22.500 | 23.625 | 11.750 |
| HG 350 | 8.250 | 4.500 | 12.500 | 22.500 | 23.625 | 11.750 |
| HG 2100 | 8.250 | 4.500 | 12.500 | 22.500 | 23.625 | 11.750 |
| HG 300 | 8.250 | 4.500 | 12.500 | 22.500 | 23.625 | 11.750 |
