Oxygen/Acetylene Series

Hose Reels

Spring Retractable

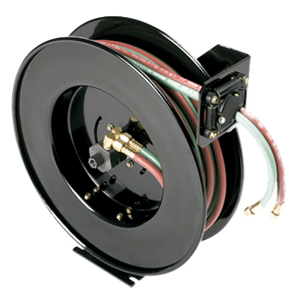

Oxygen/Acetylene Series Series   Hose Reels from Hosetract

  Models

Drag your finger across the table to scroll

Model Weight (lb) Hose ID (in) Hose Length (ft) Pressure (PSI) Inlet (in) Hose Included Max Temperature °F Rewind Type Fluid Quick Ship
COA 250521/4502001/4 FTPyes200Spring RetractableOxygen-acetylene
UTL 250 OA471/4502001/4 FTPyes200Spring RetractableOxygen-acetylene
COA 200461/410001/4 FTPno200Spring RetractableOxygen-acetylene
UTL 200 OA361/410001/4 FTPno200Spring RetractableOxygen-acetylene

  Features

Oxygen/Acetylene Reels are ideal when space and safety is required in the welding & cutting area. These reels are capable of storing and dispensing 50 feet of twin siamese welding hose.

Reels shipped standard (sf) hose payout position. For ceiling mount add suffix "sc".
Mounting Slots 1/2" wide x 3/4" deep for max 7/16" dia. bolt.
All hose lengths are for twin hose.

  • The exclusive dual hex was designed by the original designer of this dual body concept
  • The major advantage of the swivel design is that in the event of an O-ring failure, the gases will go to atmosphere instead of mixing
  • Safety banded drive spring
  • The swivel is marked for the acetylene side with notches on the hex nuts for easy identification
  • Beaded edges on spool prevents hose damage or injury to operator
  • 8-position guide arm

  Dimensions

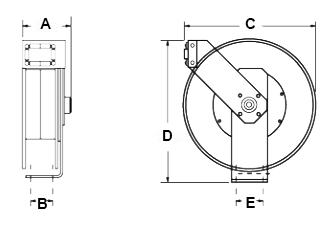

Dimensions for Oxygen/Acetylene Series Reels from Hosetract



Drag your finger across the table to scroll

Model A B C D E
COA 2506.5003.00018.00018.7505.000
UTL 250 OA6.5003.00018.00018.7505.000
COA 2006.5003.00018.00018.7505.000
UTL 200 OA6.5003.00018.00018.7505.000
